UMS has developped an unique experience in III-V devices modelling. The accuracy of our electrical models is a well-known advantage and a key success factor for our foundry customers.
United Monolithic Semiconductors' design kits have been refined by experienced CAD and modelling teams to shorten design cycle and ensure design optimisation. They include key features :
Active small and large signal scalable models.
Electro-Thermal models for GaN technology
Accurate passive models directly linked to auto-layout and library options
Compatibility with industry standard tools and operating systems
Proven techniques validated by the design of UMS products
Supported tools
United Monolithic Semiconductors works closely with Keysight and EDA partners to develop and refine an effective suite of simulation packages to support designers. Design kits are fully compatible with:
Advanced Design System (ADS) from Keysight Technologies
Microwave Office from Cadence NI (formerly AWR Corporation)
IC6 from Cadence NI

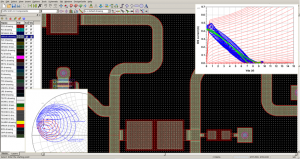

ADS
Electrical models and libraries
High frequency design is supported by Electrical Model libraries, which have been validated by our 20 year experience design team. Successful solutions are developped for demanding markets and applications. Active and passive device models are available for all qualified processes, with spread data deduced from DC and RF process control monitoring.
Passive scalable models are provided for:
Inductors and capacitors
Lines
Resistors

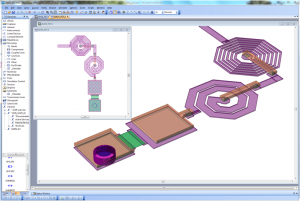

AWR
Design kit request
To get your Design Kit, please follow the 2 step procedure:
UMS delivery of foundry design kit is subject to acceptance and signature of the DK/DM IP Use Agreement. Please click on the link below to upload the document.
Fill in the below form with your complete coordinates to inform us about your need.
We will acknowledge receipt of your request. Your design kit request will be processed as soon as the signed DK/DM IP Use Agreement is received.
